Deze 10L gasboiler met gewone rookgasafvoer kan direct, eindeloos warm water op aanvraag leveren. Het is aan de muur gemonteerd, heeft een compact formaat en is gemakkelijk te installeren. Met flameout-bescherming, bescherming tegen ontstekingsuitval, antivriesbescherming, oververhittingsbeveiliging, enz. Kan de gezinsveiligheid garanderen.
10L gas water heater U Series

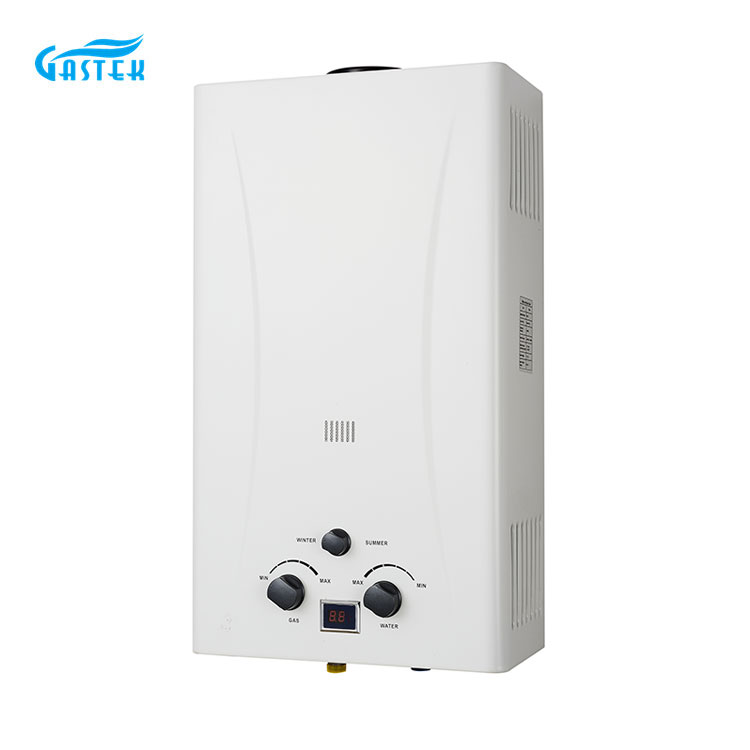

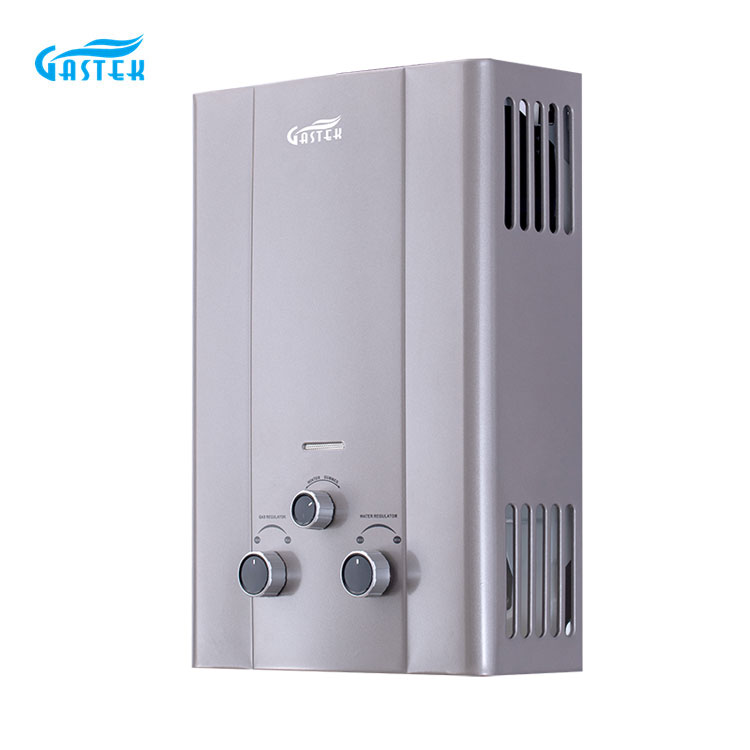

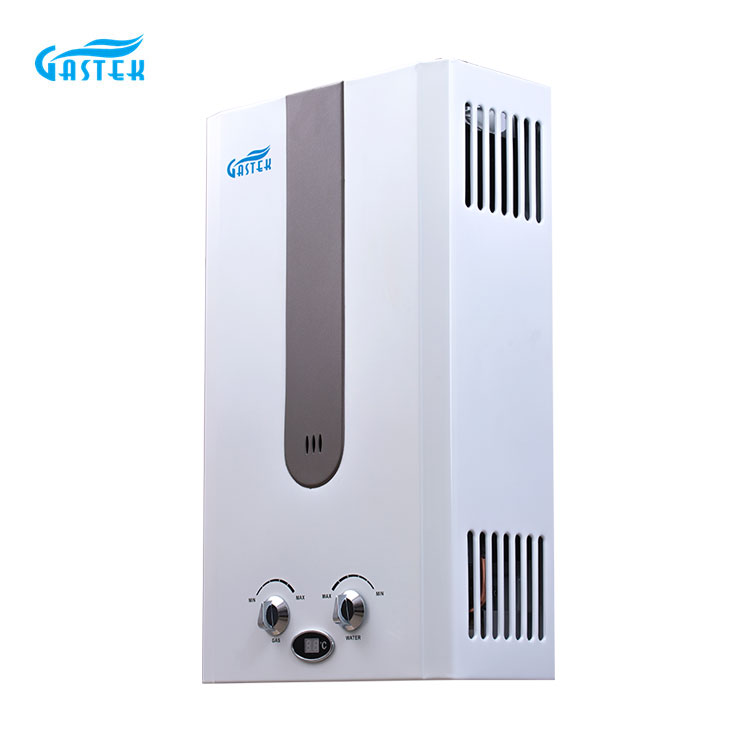

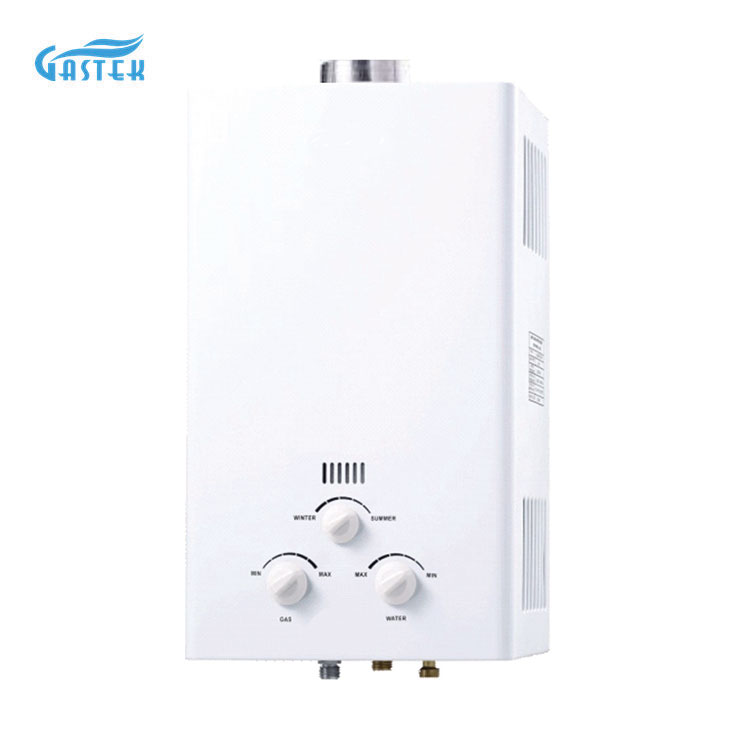

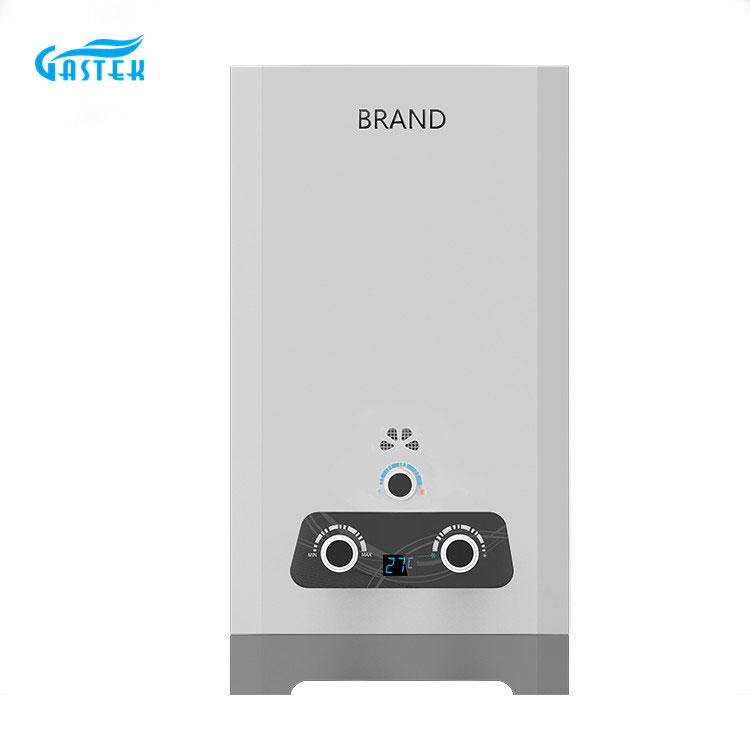

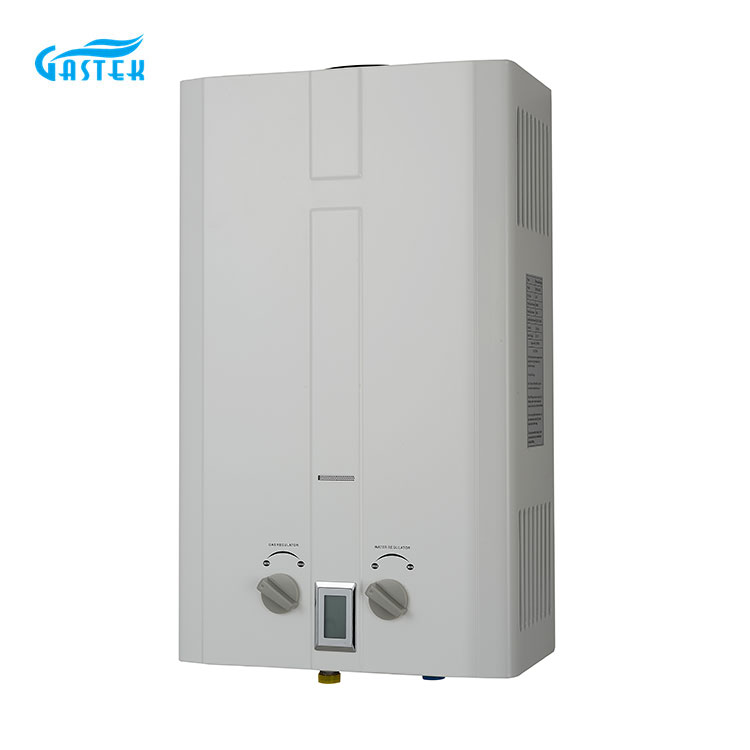

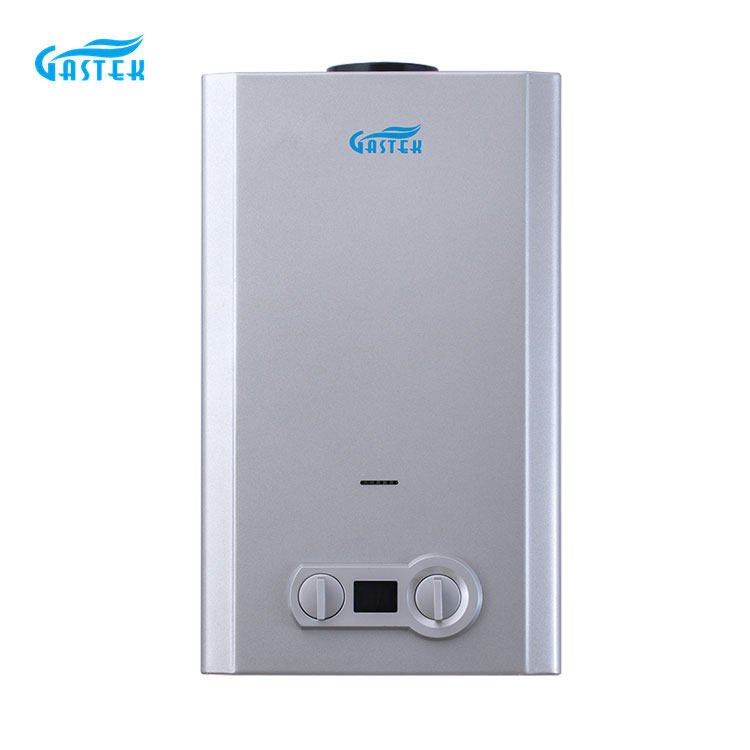

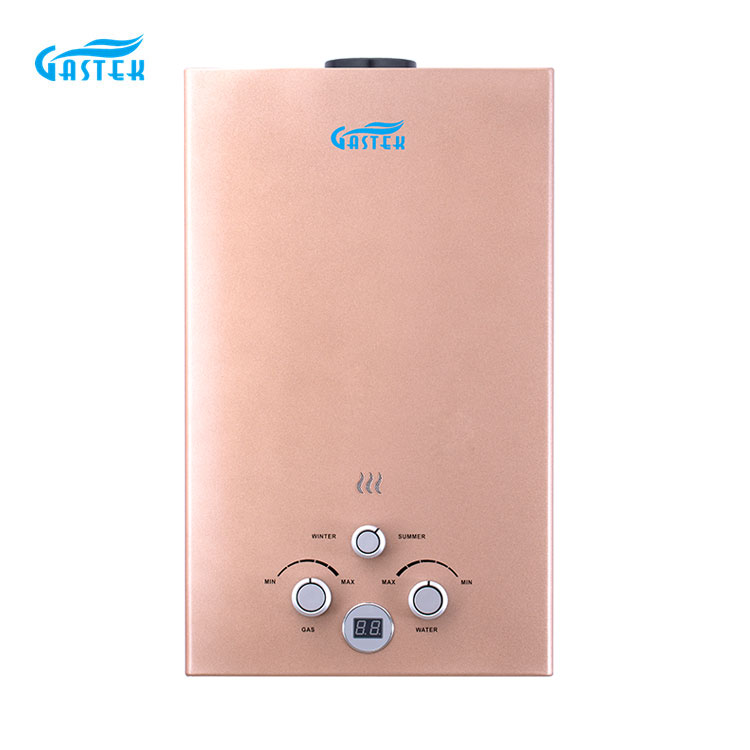

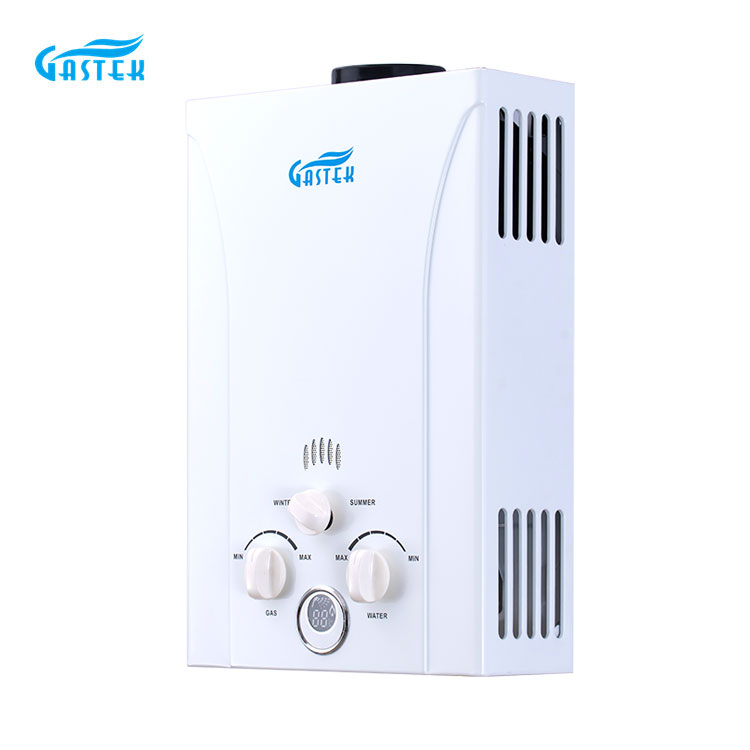

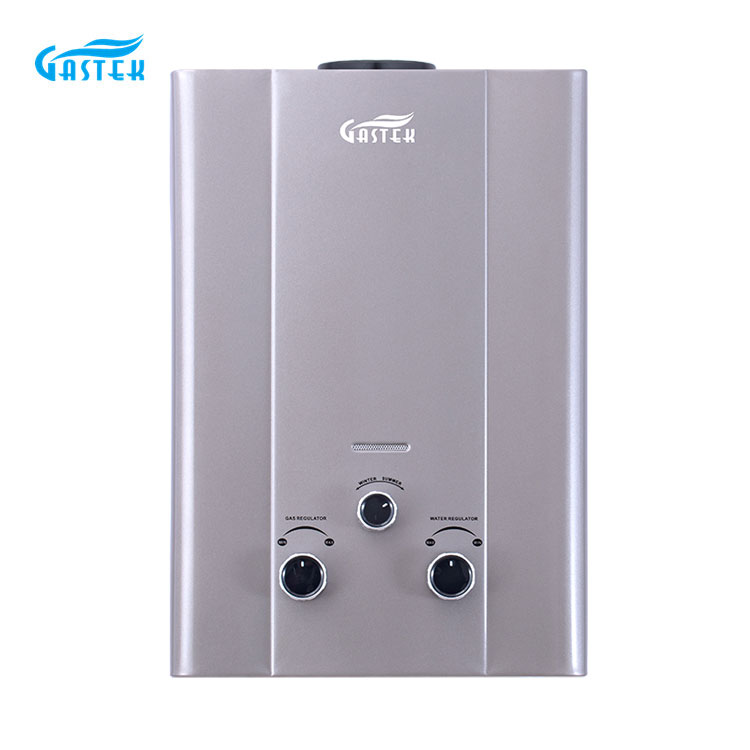

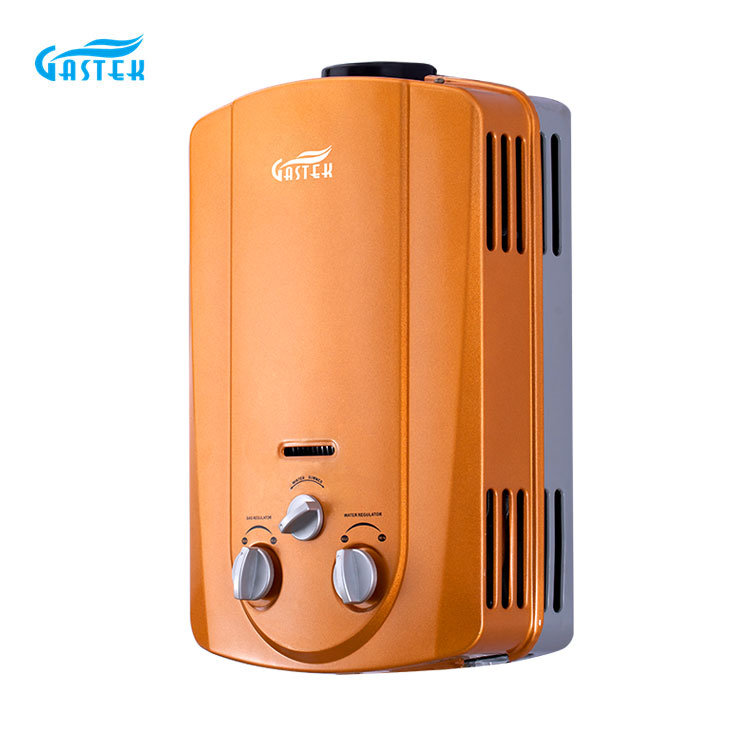

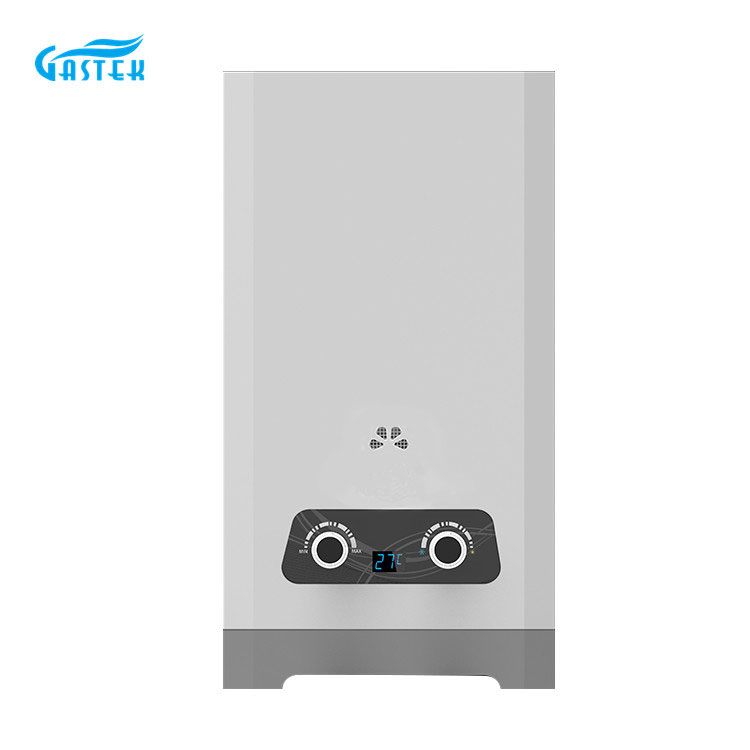

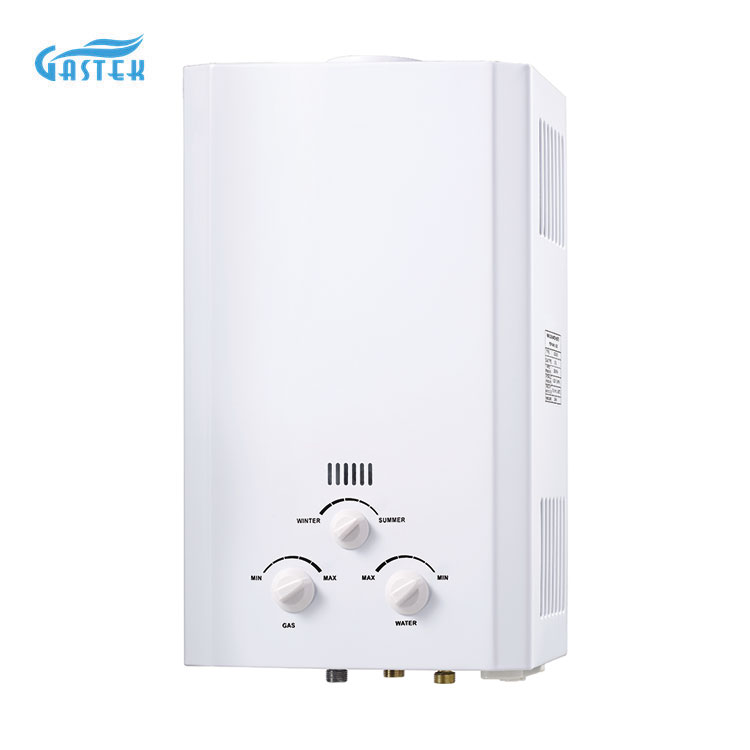

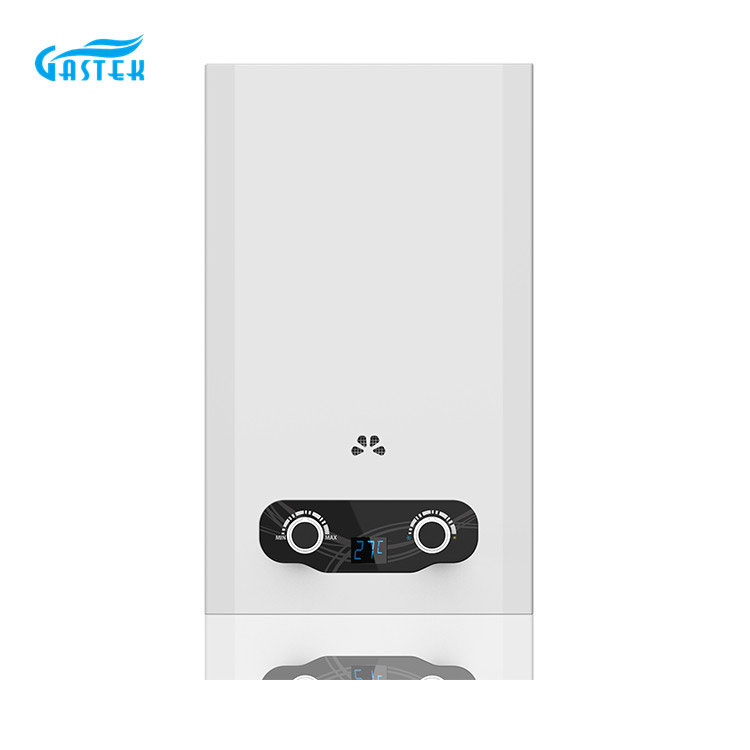

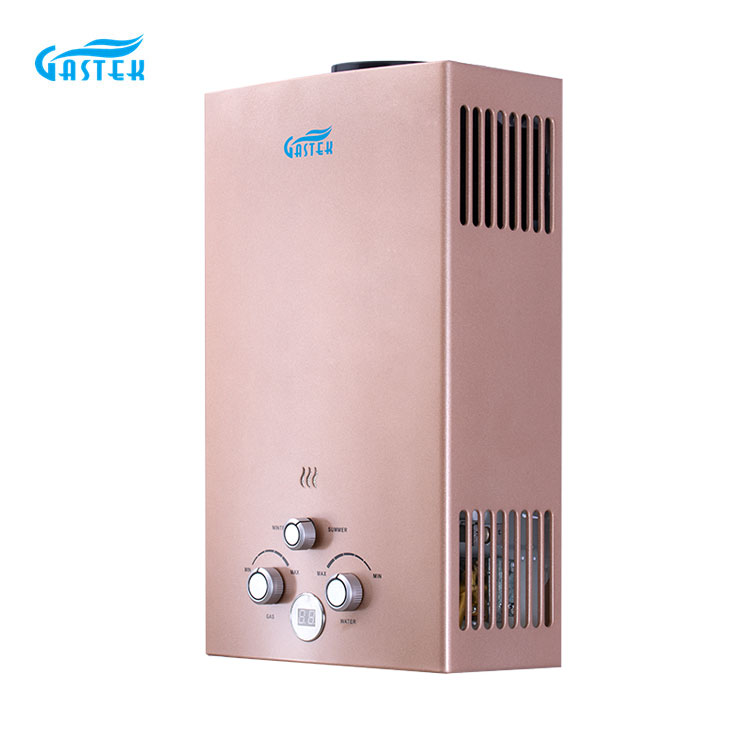

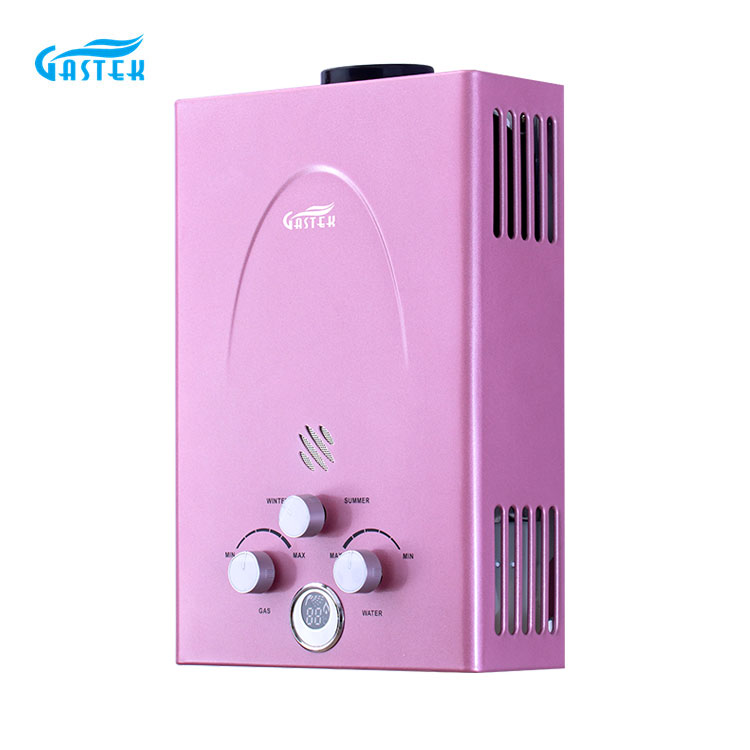

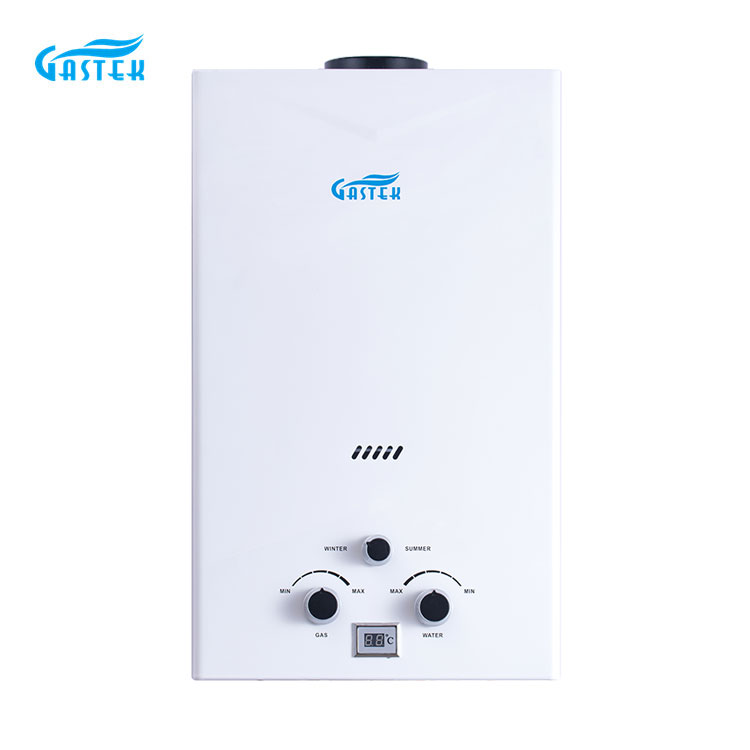

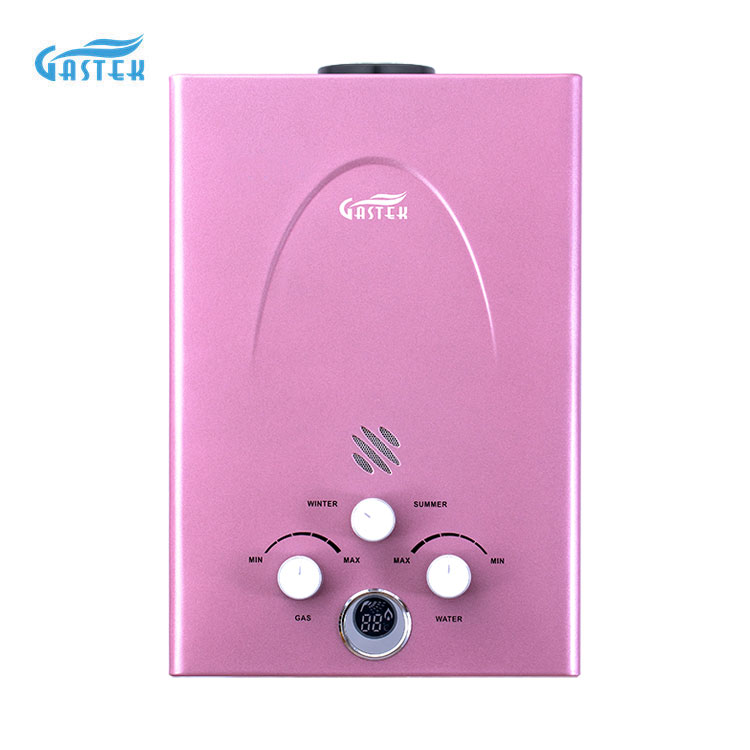

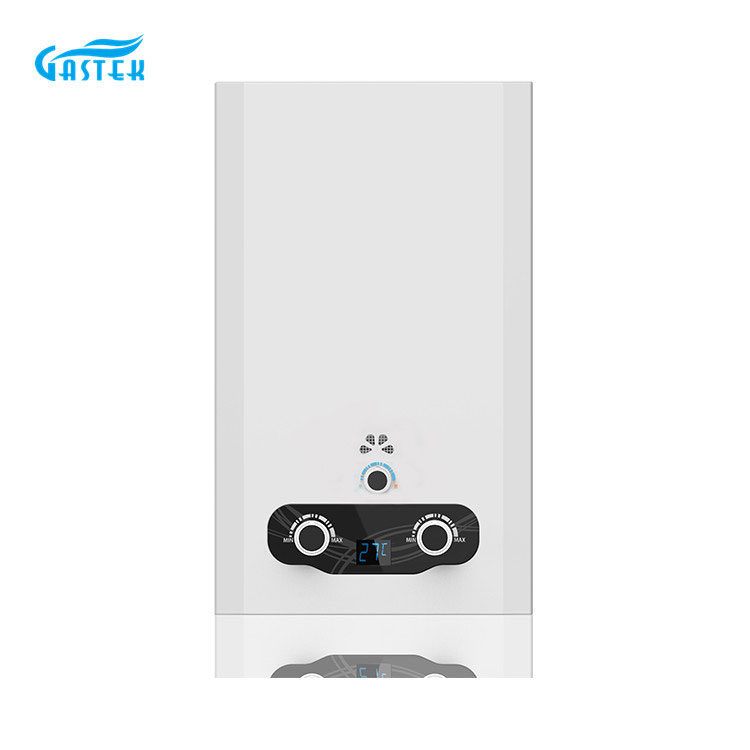

This 10L common flue type gas water heater can supply instant, endless, on-demand hot water. It’s wall mounted, with compact size, easy for installation. With flameout protection, Ignition failure protection, anti-freezing protection, over heating protection, etc. can ensure the family safety.
|
Water Flow(L/min) △T=25K |
5L | 6L | 8L | 10L | 12L | 14L | 16L | 18L |
| Rated heat load | 10kW | 12kW | 16kW | 20kW | 24kW | 28kW | 32kW | 36kW |
| Gas type | NG/LPG | |||||||
| Ignition type | Automatic pulse ignition | |||||||
| Flue pipe diameter | Φ90mm | Φ90mm | Φ110mm | Φ110mm | Φ110mm | Φ130mm | Φ130mm | Φ130mm |
| Applied water pressure | 0.025-0.75Mpa | |||||||
| Power supply | DC,3V | |||||||
| Gas Inlet | G 1/2" | |||||||
| Water Inlet | G 1/2" | |||||||
| Water Outlet | G 1/2" | |||||||
| Production Dimension | 440*300*138mm | 440*300*135mm | 520*320*168mm | 550*330*188mm | 610*350*188mm | 650*400*188mm | 700*440*200mm | 700*440*200mm |
| Packing Dimension | 525*360*200mm | 525*360*200mm | 630*370*225mm | 635*395*245mm | 710*410*245mm | 745*455*250mm | 800*495*260mm | 800*495*260mm |
| G.Weight | 5.5kgs | 5.9kgs | 7.8kgs | 9.2kgs | 10.5kgs | 13.2kgs | 15.3kgs | 16.3kgs |
|
Loading Capacity (20'GP/40'GP/40'HQ) |
800pcs/1600pcs/1900pcs | 550pcs/1100pcs/1300pcs | 490pcs/980pcs/1150pcs | 420pcs/840pcs/1000pcs | 350pcs/700pcs/810pcs | 280pcs/560pcs/650pcs | ||
1） Wide range, endless, tankless, instant hot water capacity from 5L-18L
2) Multi-safety protections, like over-heating protection, Anti-dry combustion protection, Automatic electrical pulse ignition device, Flame out protection, Automatically shut off when combustion is incomplete.
3) Different selective temperature display;
4) Different selective knobs;
5) Winter/summer adjustment, make hot water temperature more comfort
6) 20 or 40 min timer available
7) 2 batteries powered
