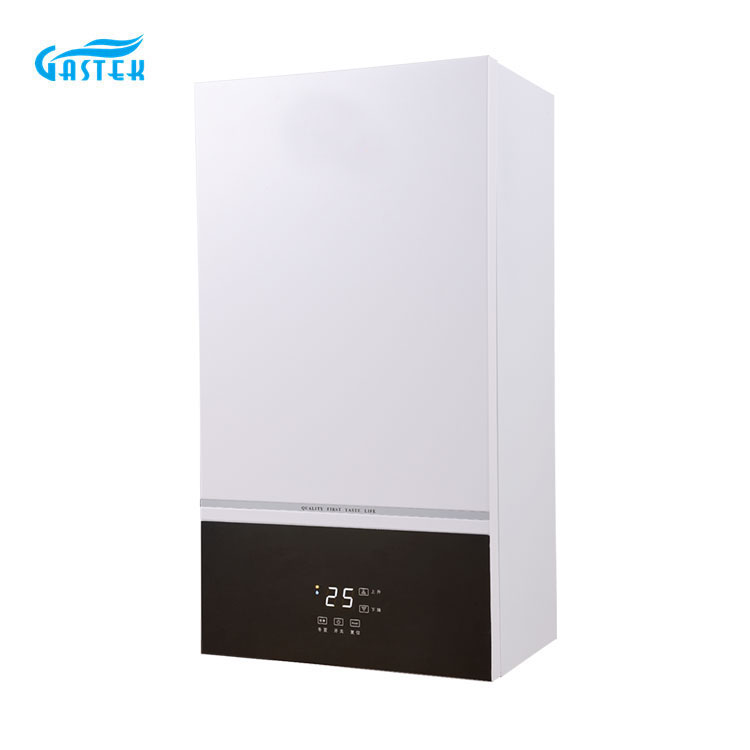

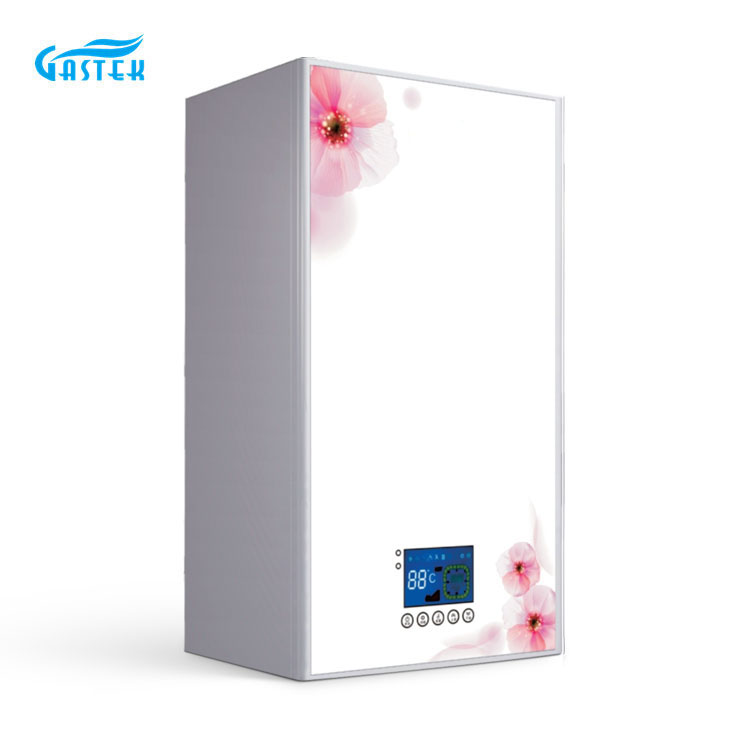

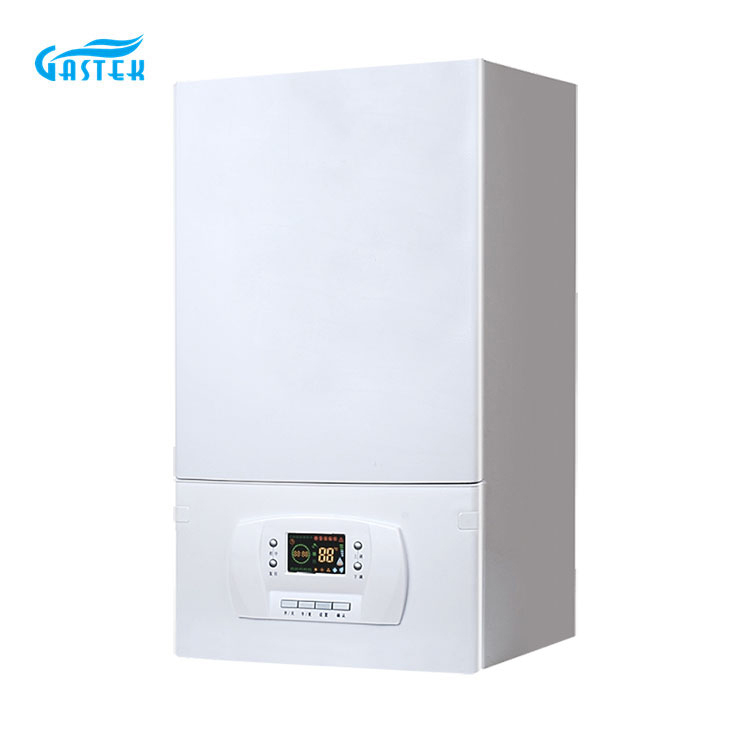

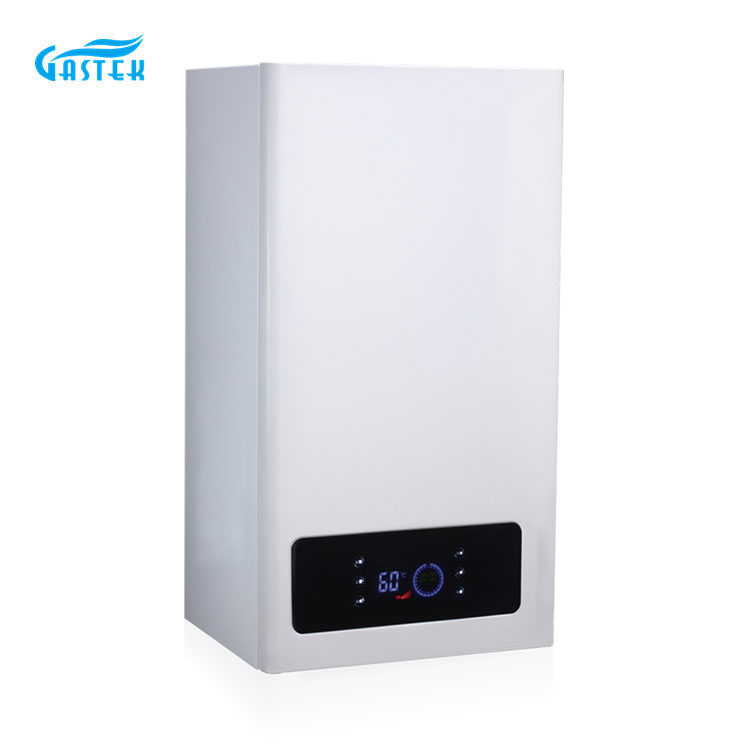

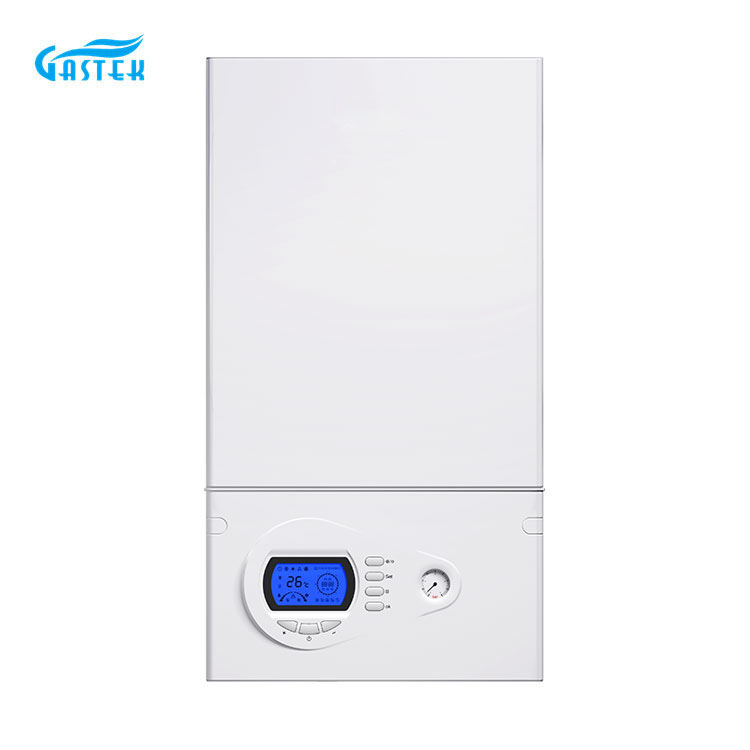

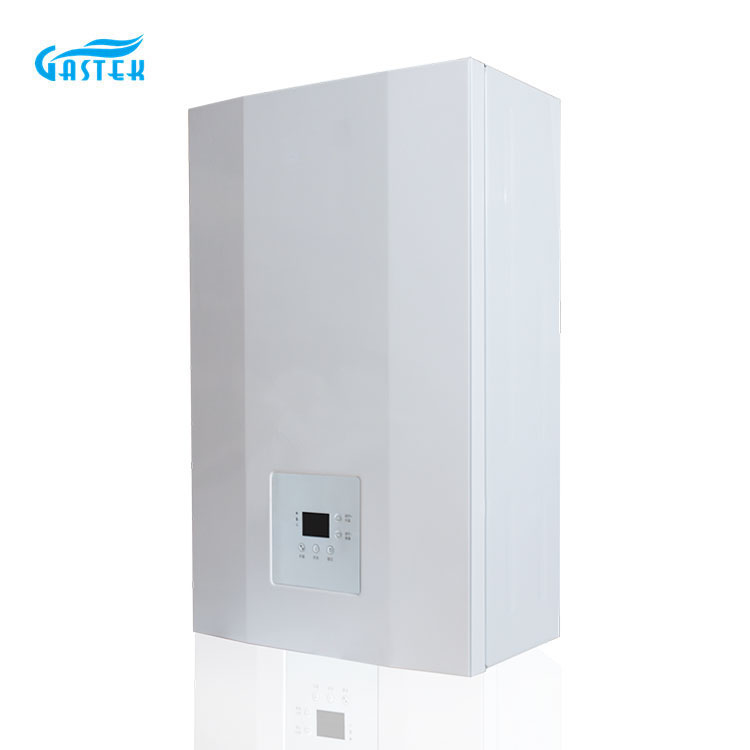

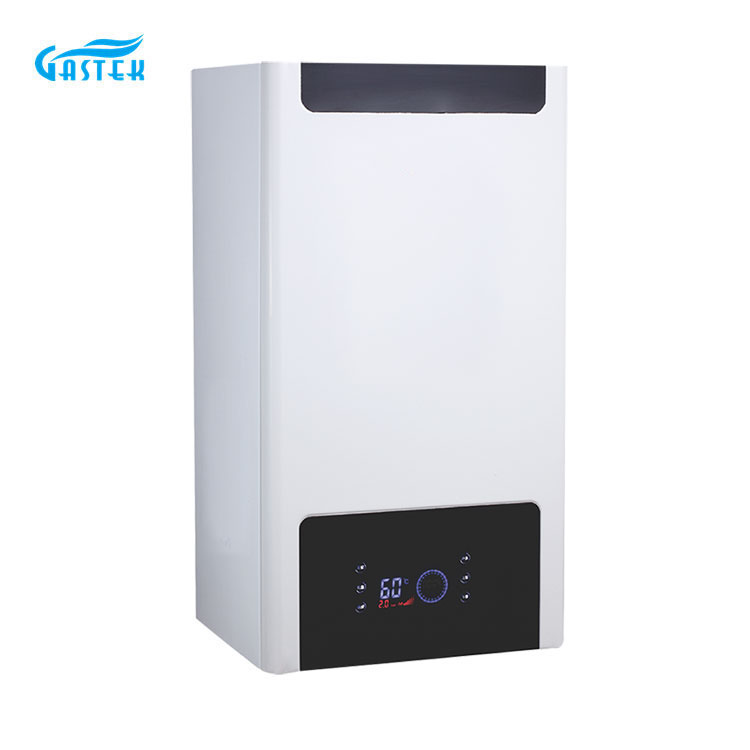

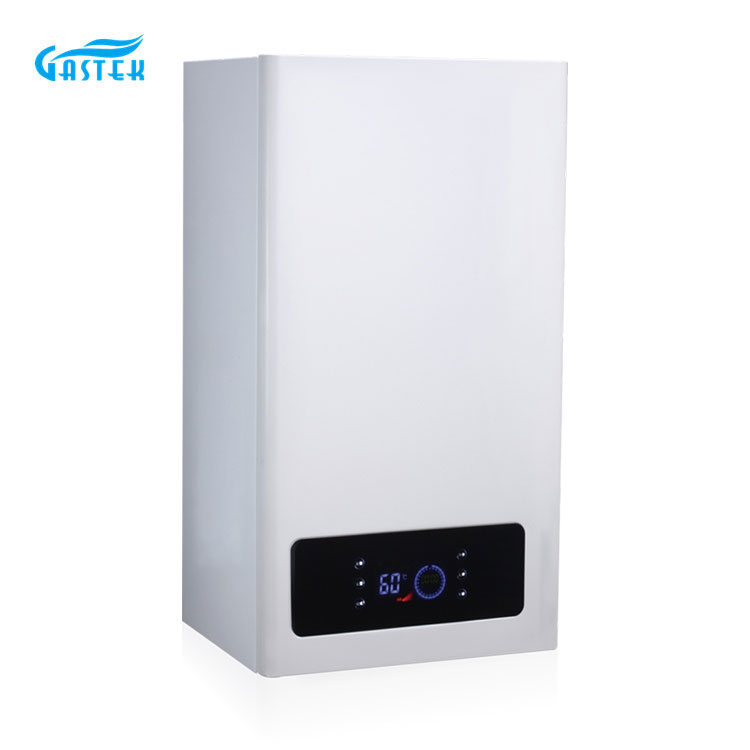

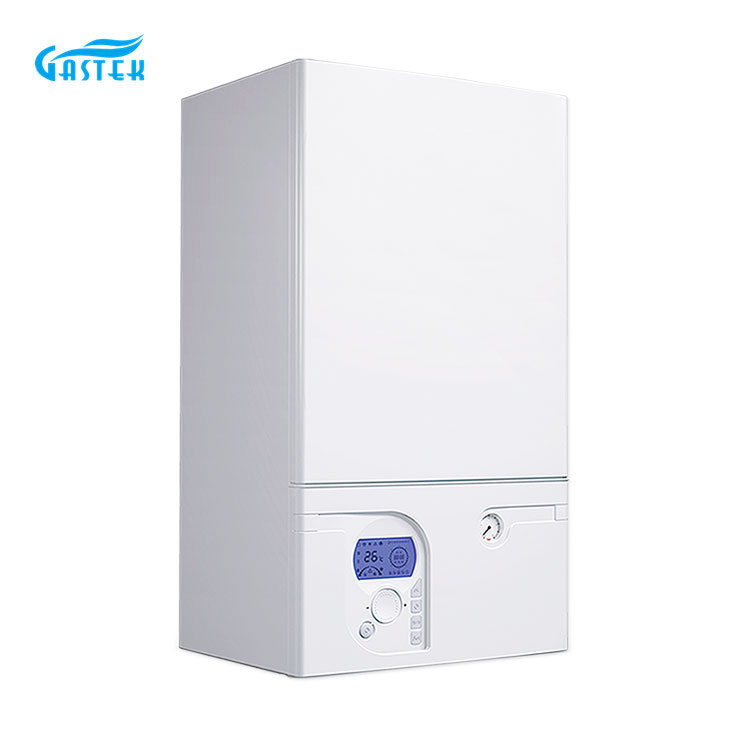

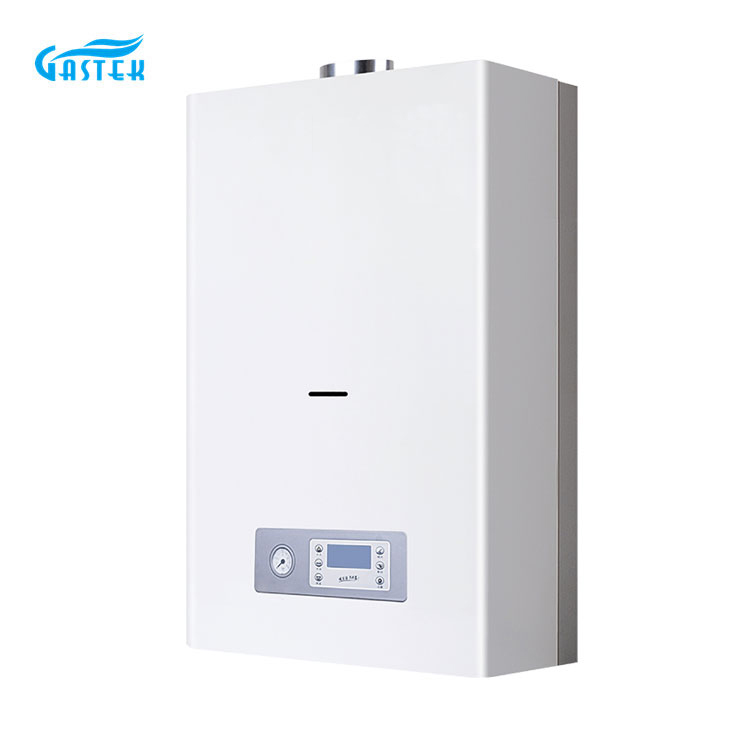

Gemeenschappelijk gasboilerontwerp van Europese mode-stijl met groot LCD-scherm, aanraaktoetsen, eenvoudig te bedienen. Common Gas Boiler kan de werk- en verbrandingsstatus nauwkeurig weergeven, het kan een slimme computerbesturing en een zelfinspectiesysteem gebruiken. Common Gas Boiler heeft ultrastille ventilatoren, pompen, verbrandingssysteem, badkamer, onafhankelijk verwarmingssysteem, meer aanpasbaar.
|
L1PB18 |
L1PB20 |
L1PB24 |
L1PB26 |
L1PB28 |
L1PB30 |
L1PB32 |
L1PB36 |
L1PB40 |
1. Design of European fashion style with large-screen LCD display. It can show the working andcombustion status accurately.
2. Touch keys, easy to operate.
3. Ultra-quiet fans, pumps, combustion system, bathroom, independent heating independent system,more adaptable.
4. Smart computer control and self-inspection system.
5. Multiple automatic protections.
|
Model no |
Unit |
L1PB18 |
L1PB20 |
L1PB24 |
L1PB26 |
L1PB28 |
L1PB30 |
L1PB32 |
L1PB36 |
L1PB40 |
|
|
Gas type and pressure |
LPG |
Pa |
2800 |
||||||||
|
NG |
Pa |
1300/2000 |
|||||||||
|
Rated Heat Input |
kW |
18 |
20 |
24 |
26 |
28 |
30 |
32 |
36 |
40 |
|
|
Efficiency at ratedheat power |
% |
≧99 |
|||||||||
|
Voltage |
|
AC 220V，50Hz |
|||||||||
|
Power consumption |
W |
105.0 |
105.0 |
110.0 |
110.0 |
118.0 |
118.0 |
118.0 |
210.0 |
210.0 |
|
|
Protection Class IPrating |
|
IPX4D |
|||||||||
|
Heating mode |
Rated Heat Output |
kW |
16 |
17.9 |
21.4 |
23.2 |
25 |
26.7 |
28.5 |
32 |
35.6 |
|
Minimum Heat Input |
kW |
6.3 |
6.8 |
8.4 |
9 |
9.6 |
10.5 |
11 |
12.6 |
14 |
|
|
Minimum Heat Output |
kW |
5.4 |
5.8 |
7.1 |
7.7 |
8.2 |
8.9 |
9.4 |
10.7 |
11.9 |
|
|
Heating temperature control range |
℃ |
30~80(radiator);30~60(floor heating); |
|||||||||
|
Heating Area |
m2 |
90.0 |
100.0 |
120.0 |
130.0 |
140.0 |
150.0 |
160.0 |
180.0 |
200.0 |
|
|
Applied water pressure in heating mode |
bar |
0.5-3.0 |
|||||||||
|
Preset Pressure of Expansion Tank |
bar |
1.0 |
|||||||||
|
DHW mode |
Minimum Heat Input |
kW |
6.3 |
6.8 |
8.4 |
9 |
9.6 |
10.5 |
11 |
12.6 |
14 |
|
Minimum Heat Output |
kW |
5.4 |
5.8 |
7.1 |
7.7 |
8.2 |
8.9 |
9.4 |
10.7 |
11.9 |
|
|
DHW temperature control range |
℃ |
35~60 |
|||||||||
|
Rated hot water capacity(Δt=25K ) |
L |
7.5 |
8.3 |
10.0 |
10.8 |
11.7 |
12.5 |
13.4 |
15.0 |
16.7 |
|
|
Applied water pressure in DHW mode |
bar |
0.2-8 |
|||||||||
|
Expansion tank capacity |
L |
4.5 |
6.0 |
8.0 |
|||||||
|
Pipe joint |
Cold water inlet pipe |
inch |
G3/4 |
||||||||
|
Hot water outlet pipe |
inch |
G1/2 |
|||||||||
|
Gas inlet pipe |
inch |
G3/4 |
|||||||||
|
Air input/Exhaust Duct |
mm |
Φ60/Φ100 |
|||||||||
