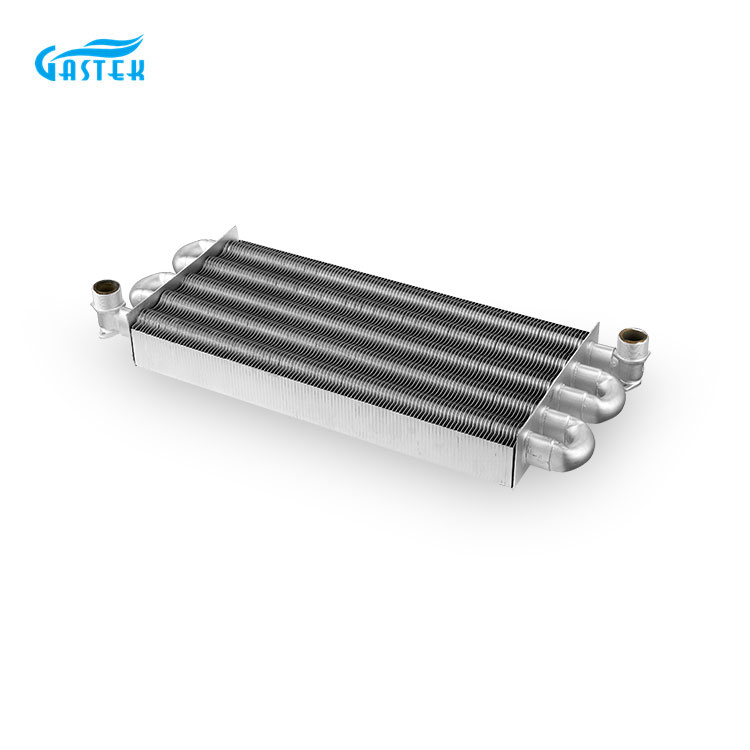

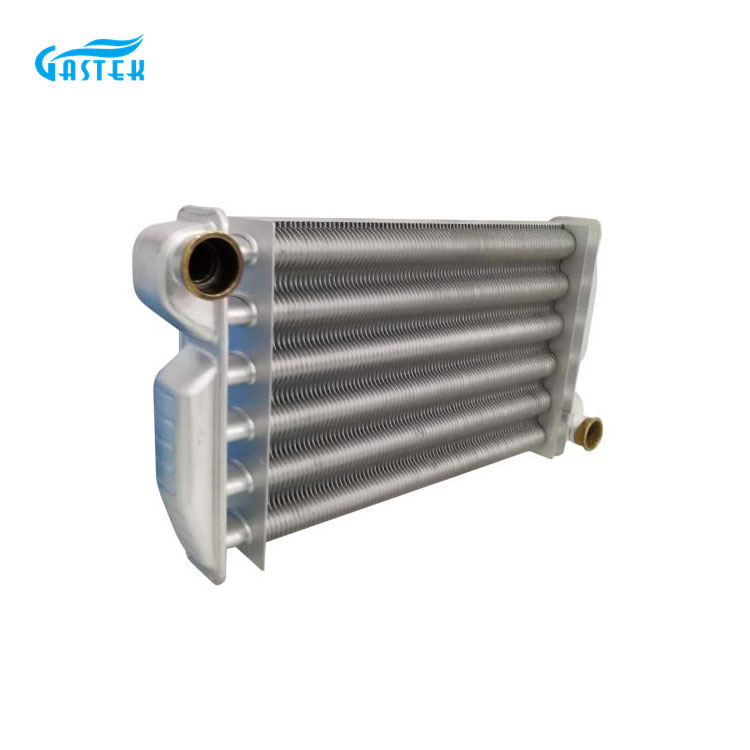

One Circuit Heat Exchanger

This one circuit heat exchanger is made of pure oxygen-free copper using expanded tube and full brazing processes which can effectively reduce the heat transfer heat resistance, and using enhanced heat transfer fins which has high thermal efficiency. The surface is coated with high temperature refractory paint and solidified. There is no any pollution when production. The product life can reach for more than ten years. There are SUS304 sanitary stainless steel mufflers inside of the tube, which is environmental-friendly and can avoid noise at high water temperature. We can customize this type of series products from 16 kw to 40 kw according to customer needs.

Stuur onderzoek

Productomschrijving

This one circuit heat exchanger is made of pure oxygen-free copper using expanded tube and full brazing processes which can effectively reduce the heat transfer heat resistance, and using enhanced heat transfer fins which has high thermal efficiency.

The surface is coated with high temperature refractory paint and solidified. There is no any pollution when production.

The product life can reach for more than ten years.

There are SUS304 sanitary stainless steel mufflers inside of the tube, which is environmental-friendly and can avoid noise at high water temperature.

We can customize this type of series products from 16 kw to 40 kw according to customer needs.

Product Parameter

Model No	Heat Load (KW)	Fin's Quantity (pcs)	Amax Total Length (mm)	B Fin's Length (mm)
GL16	16	53	272.5	160
GL18	18	57	299.5	187
GL20	20	61	312.5	200
GL21	21	64	322.5	210
GL23	23	70	342.5	230
GL26	26	76	362.5	250
GL28	28	82	382.5	270
GL30	30	88	402.5	290
GL32	32	94	422.5	310
GL34	34	103	452.5	340
GL36	36	116	492.5	380

Product Process
